Pinouts

NOTE: http://www.phathack.com/pinouts.html contains the same data at the time of writing and includes inline images

Currently the only info I have is for Keg<->PhatBox, VW<->PhatBox and BMW(Blitzsafe)<->PhatBox
Please note that these pinouts could be incorrect, I personally mapped out the music keg so am relatively sure that is correct but the BMW and VW information is from a third party. I am not responsible for any damage that could be caused by the use of this information.

Feel free to email me if you see any problems or need clarification at sam@bingner.com

The Phatbox end of a cable is 3M Part#10126-3000VE or 10126-6000EC and can be ordered from: HERE or HERE respectively The MBUS Connector should be: Kobiconn 8PIN DIN PN#171-0278

General PhatBox Info

Pin Definitions

PhatBox Pins (Verified for Kenwood, VW and BMW)

Pin	Function
1	Left Audio +
2	Right Audio +
3	Audio Ground
4, 16	Ground
10, 13	VCar
14	ACC

Music Keg

Ordering

• You can try to order the Kenwood to Keg cable from http://www.pacparts.com/electronics/part.cfm enter manufacturer of "KENWOOD" and Part No "KHD-5L1"

Pinouts

Kenwood CD-Changer interface info from http://www.mictronics.de/?page=cdc_proto#Kenwood pin/direction/description

1. IN/OUT - CH_CLK - Clock input/output for changer
2. IN - Audio left channel
3. OUT - CH-DATAH - Data output to changer
4. IN - CH-DATAC - Data input from changer
5. IN - CH-REQC - Request input from changer; "Low" : Request
6. IN - Audio right channel
7. OUT - CH-RST - Reset output to changer
8. AGND - Audio Ground
9. IN - CH-MUTE - Mute request from changer; "High" : Mute
10. OUT - CH-CON - Changer control; "High" : Operation mode "Low" : Standby
11. Vcc +12V
12. Ground
13. OUT - CH-REQH - Request output to changer; "Low" : Request

• Phatbox - Kenwood.png
• VSD of pinouts for Music Keg

PhatNoise/Sony

Pinouts

• Phatbox - Sony.png
• VSD of pinouts for Sony

PhatNoise/BMW (Blitzsafe)

General

• Click here for some info you should read if you're installing to BMW

Pinouts

MBUS Pins (BMW Side)

1. ACC (+12V)
2. Ground
3. Right Audio +
4. Audio Ground
5. Left Audio +
6. DATA
7. VCar (+12V)
8. Ground

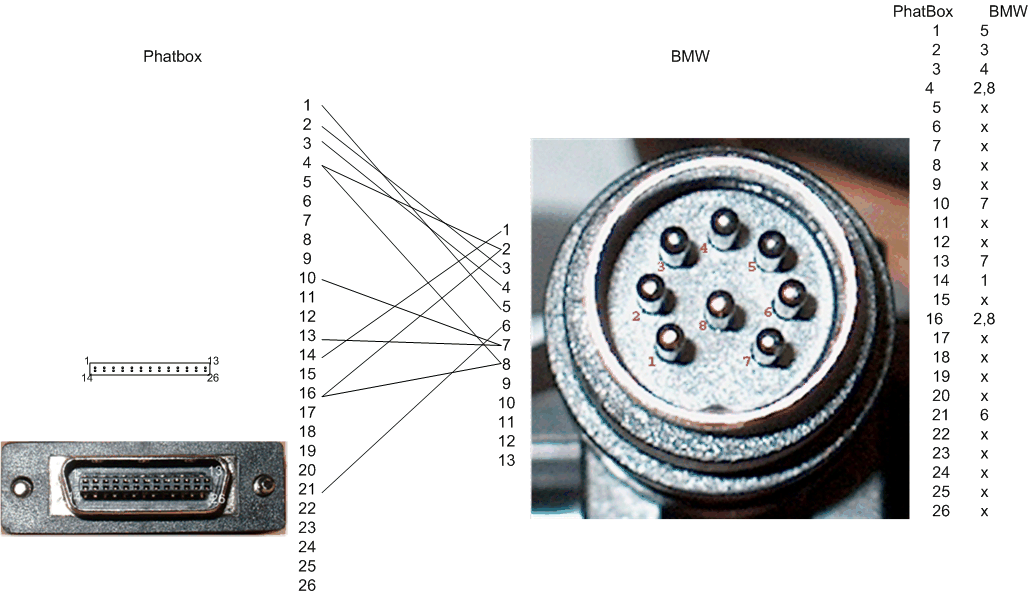

• Phatbox - BMW.png
• VSD of pinouts for BMW

PhatNoise/VW

Pinouts

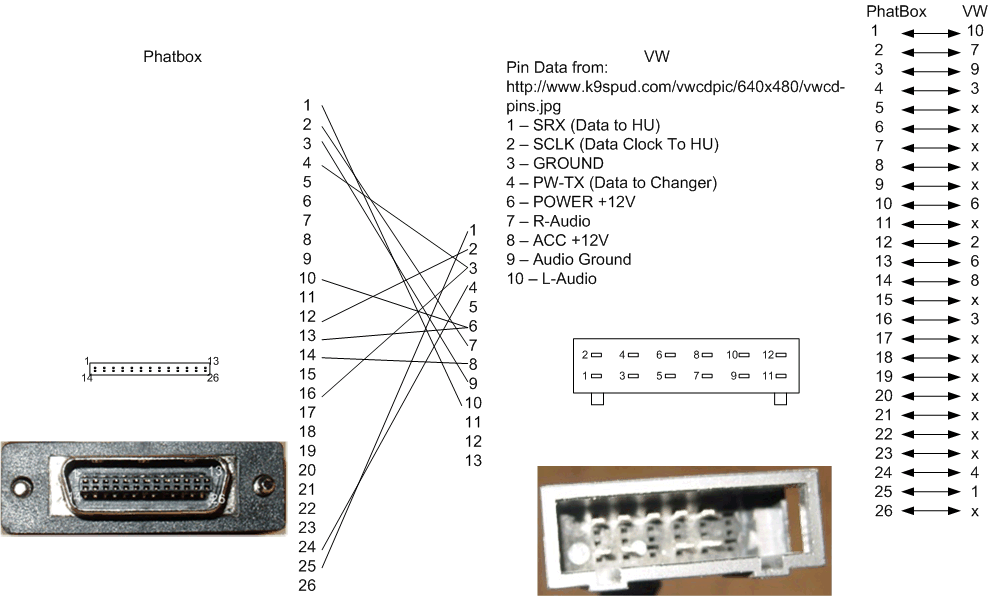

• Phatbox - VW.png
• VSD of pinouts for VW

Audi

General

• Follow this link for a page that explains quite well and has all the pinouts etc...

I will be updating this page at some time to mirror the information in my own format, assuming I get the permission of the author
